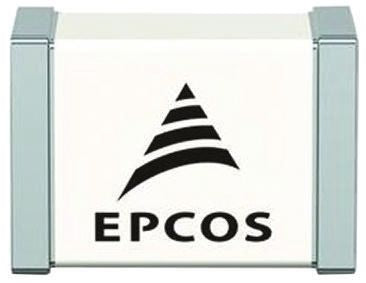

EPCOS EHV Series 150V 2kA SMD 2 Electrode Arrester Gas Discharge Tube (GDT) [B88069X6071T203]; 167-0320
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | EHV |
| Suppressor Type | 2 Electrode Arrester |
| Maximum Surge Current | 2kA |
| DC Spark Over Voltage | 150V |
| Impulse Spark Over Voltage | <500 V @ 100 V/μs, <600 V @ 1 kV/μs |
| Maximum Voltage Rating | 150 V dc |
| Mounting Type | Surface Mount |
| Dimensions | 4.5 x 3.2 x 2.7mm |
| Depth | 2.7mm |
| Height | 3.2mm |
| Length | 4.5mm |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -40°C |
