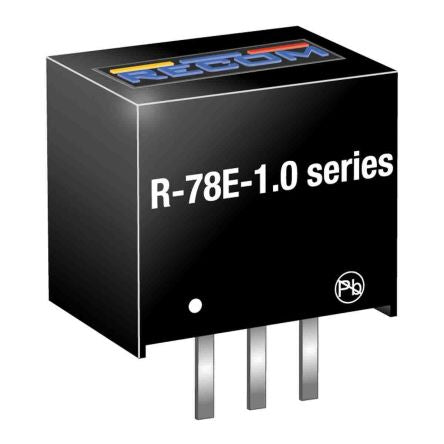

Recom DC-DC Switching Regulator, 8 → 28V dc Input, 5V dc Output, 1A [R-78E5.0-1.0]; 144-6290
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 8 → 28V dc |
| Output Voltage | 5V dc |
| Number of Outputs | 1 |
| Output Current | 1A |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.91 |
| MTBF | 3875000h |
| Load Regulation | ±1.5% |
| Line Regulation | ±1% |
| Ripple And Noise | 120mV Pk-Pk |
| Power Signal Conversion Type | DC-DC |
| Switching Frequency Range | 330kHz |
| Protection Features | Over Current Protection, Short Circuit Protection |
| Depth | 10.4mm |
| Width | 8.5mm |
| Maximum Input Current | 1A |
| Length | 11.6mm |
| Standards Met | AM2 Certified, EN 55022 Class A, EN 55022 Class B, IEC/EN 60950-1, MIL-HDBK 217F, Reach, UL 94 V-0 |
| Series | R-78E-1.0 |
| Special Features | Accurate Output Voltage Regulation, Efficiency Upto 91%, High Efficiency, Wide Input Range, Wide Input Range 8 to 28 V |
