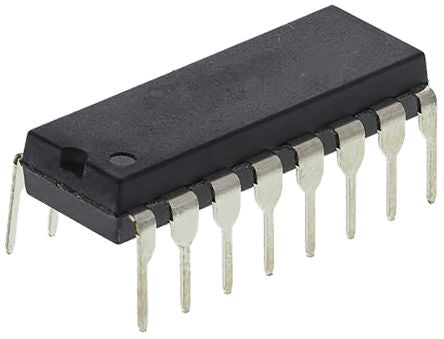

STMicroelectronics SG3525AN Dual PWM Switching Regulator, 50 (Reference) mA, 500 (Source) mA, 400 kHz, Adjustable, [SG3525AN]; 168-8921
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| PWM Controller Type | Switching Regulator |
| Number of PWM Outputs | 2 |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 35 V |
| Output Voltage | 5 → 5.2 V |
| Output Current | 50 (Reference) mA, 500 (Source) mA |
| Line Regulation | 20 mV |
| Load Regulation | 50 mV |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Maximum Switching Frequency | 400 kHz |
| Output Type | Adjustable |
| Dimensions | 20 x 7.1 x 5.1mm |
| Minimum Operating Temperature | -55 °C |
| Supply Voltage | 4.5 → 35V |
| Width | 7.1mm |
| Height | 5.1mm |
| Maximum Operating Temperature | +150 °C |
| Typical Operating Supply Voltage | Maximum of 35 V |
| Length | 20mm |
