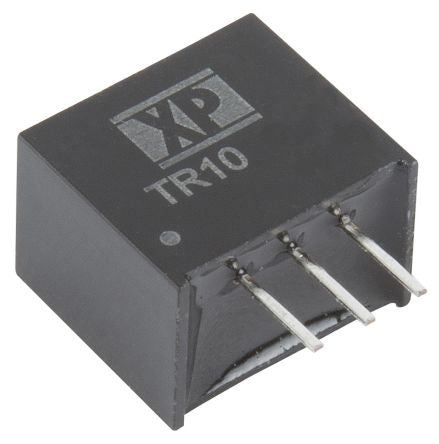

XP Power Switching Regulator, 7 → 28V dc Input, 3.3V dc Output, 1A [TR10S3V3]; 134-6944
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 7 → 28V dc |
| Output Voltage | 3.3V dc |
| Number of Outputs | 1 |
| Output Current | 1A |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.9 |
| MTBF | 3.8 (Minimum)Mh |
| Load Regulation | 0.015 |
| Line Regulation | 0.01 |
| Ripple And Noise | 100mV Pk-Pk |
| Width | 10.16mm |
| Maximum Input Current | 530mA |
| Power Signal Conversion Type | DC-DC |
| Weight | 2.1g |
| Depth | 7.5mm |
| Switching Frequency Range | 330kHz |
| Protection Features | Short Circuit Protection |
| Standards Met | EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Special Features | Class B Conducted & Radiated Emissions, Wide Input Range to 28 V, 3 Year Warranty, 3-Pin Switching Regulator |
| Length | 11.68mm |
| Series | TR10 |
