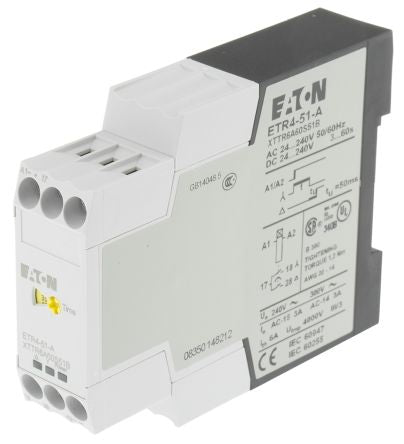

Eaton Star Delta Switching Single Timer Relay, Screw, 3 → 60 s, SPNO, 2 Contacts, DPDT, 24 → 240 V ac/dc [ETR4-51-A]; 225-8295
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac/dc |
| Time Range | 3 → 60 s |
| Mode of Operation | Star Delta Switching |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Series | ETR4 |
| Time Increment | Seconds |
| Power Supply | External |
| Contact Configuration | SPNO |
| Current Maximum | 0.125 |
| Terminal Type | Screw |
| Minimum Voltage | 24 V ac/dc |
| Maximum Voltage | 240 V dc, 400 V ac |
| Depth | 103mm |
| Length | 82.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Time Delay | 70 (Recovery) ms |
| Switch Configuration | DPDT |
