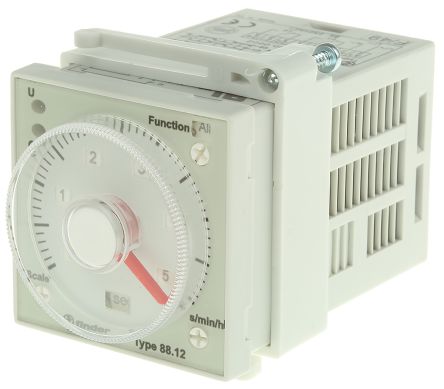

Finder Multi Function Timer Relay, 8-Pin Connector, 0.05-10 min, 0.05-10 h, 0.05-10 s, 5-100 h, DPDT, 2 Contacts, DPDT [88.12.0.230.0002]; 537-7721
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 230 V ac/dc |
| Time Range | 0.05-10 h, 0.05-10 min, 0.05-10 s, 5-100 h |
| Mode of Operation | Interval (1 Timed + 1 Instantaneous Contact), Interval (2 Timed Contacts), On Delay (1 Timed + 1 Instantaneous Contact), On Delay (2 Timed Contacts), Pulse Delayed, Symmetrical Flasher (Starting Pulse ON) |
| Mounting Type | Chassis Mount |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Series | 88 Series |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.333333333333333 |
| Terminal Type | 8-Pin Connector |
| Minimum Voltage | 20.4 V ac/dc |
| Maximum Voltage | 264.5 V ac / V dc |
| Minimum Operating Temperature | -10°C |
| Contact Material | Silver Cadmium Oxide |
| Maximum Operating Temperature | +55°C |
| Length | 48mm |
| Width | 48mm |
| Switch Configuration | DPDT |
| Time Delay | 200 ms |
| Depth | 92.1mm |
