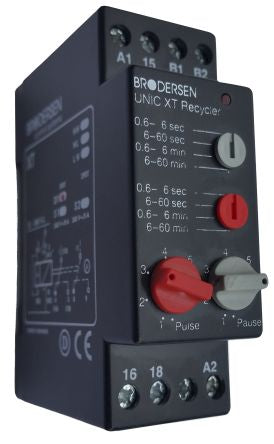

RS PRO Multi Function Time Delay Relay, Screw, 0.6 s → 60 min, 1 Contacts, SPDT, 10.5 → 265 V ac/dc; 161-7606
Mã kho: 1617606
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 10.5 → 265 V ac/dc |
| Time Range | 0.6 s → 60 min |
| Mode of Operation | Asymmetrical Recycler with Pause Start, Asymmetrical Recycler with Pulse Start, Delay Pulse, OFF Pulse, ON Delay, ON Pulse, ON Pulse with Control Switch, One Shot Asymmetrical with Control Switch, One Shot Asymmetrical without Control Switch, Release Delay, Release True OFF Delay, Symmetrical Recycler with Pause Start, Symmetrical Recycler with Pulse Start |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Current Maximum | 0.333333333333333 |
| Terminal Type | Screw |
| Minimum Voltage | 10.5 V ac/dc |
| Maximum Voltage | 265 V ac/dc |
| Switch Configuration | SPDT |
| Length | 27mm |
| Width | 75mm |
| Minimum Operating Temperature | -20°C |
| Time Delay | 100 ms |
| Maximum Operating Temperature | +55°C |
| Depth | 63mm |
| Contact Material | Silver Nickel |
