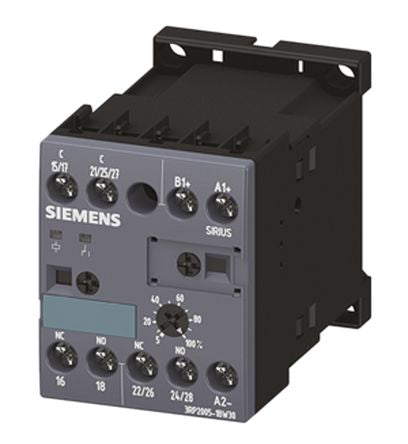

Siemens Multi Function Timer Relay, Screw, 0.05 s → 100 h, DPDT, 2 Contacts, 24 → 240 V [3RP2005-1BW30]; 834-7515
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V |
| Time Range | 0.05 s → 100 h |
| Mode of Operation | Additive ON Delay With Control Signal, OFF Delay with Control Signal, OFF Delay/Instantaneous With Control Signal, ON Delay, ON Delay/Instantaneous Contact, ON Delay/OFF Delay/Instantaneous With Control Signal, Passing Break Contact With Control Signal, Passing Break Contact/Instantaneous With Control Signal, Passing Make Contact, Passing Make Contact/Instantaneous Contact, Pulse-Shaping /Instantaneous With Control Signal |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.0416666666666667 |
| Terminal Type | Screw |
| Length | 45mm |
| Width | 57mm |
| Depth | 73mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
