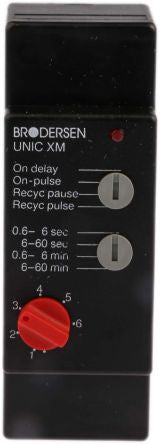

Brodersen Systems Multi Function Timer Relay, 11-Pin Connector, 0.6 → 60 min, DPDT, 2 Contacts, DPDT [XM-S2]; 329-222
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 10.5 → 265 V ac/dc |
| Time Range | 0.6 → 60 min |
| Mode of Operation | Asymmetrical Recycler with Pause Start, Asymmetrical Recycler with Pulse Start, Delay Pulse, OFF Pulse, ON Delay, ON Pulse, ON Pulse with Control Switch, One Shot Asymmetrical with Control Switch, One Shot Asymmetrical without Control Switch, Release Delay, Release True OFF Delay, Symmetrical Recycler with Pause Start, Symmetrical Recycler with Pulse Start |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Series | XM-S2 |
| Time Increment | Minutes |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.333333333333333 |
| Terminal Type | 11-Pin Connector |
| Minimum Voltage | 10.5 V ac/dc, 24 V dc |
| Maximum Voltage | 265 V ac/dc |
| Switch Configuration | DPDT |
| Time Delay | 100 (Reset) ms |
| Width | 53.5mm |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Length | 75mm |
| Depth | 27mm |
