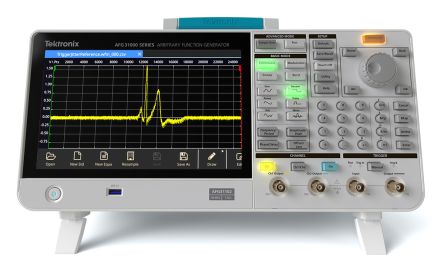

Tektronix AFG31051 Function Generator & Counter 50MHz [AFG31051]; 179-3506
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 50MHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 40MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz |
| Maximum Frequency Range Triangle/Saw | 800kHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Input Impedance | 10 kΩ |
| Width | 143.3mm |
| Height | 191.8mm |
| Minimum Operating Temperature | 0°C |
| Frequency Range Square Pulse and Arbitrary Waveform | Pulse), 1 mHz → 25 MHz (Arbitrary Waveform), 1 μHz → 40 MHz (Square |
| Dimensions | 412.8 x 143.3 x 191.8mm |
| Output Amplitude | 10V Pk-Pk |
| Maximum Operating Temperature | +50°C |
| Weight | 4.7kg |
| Output Impedance | 50Ω |
| Length | 412.8mm |
| Model Number p | AFG31051 |
