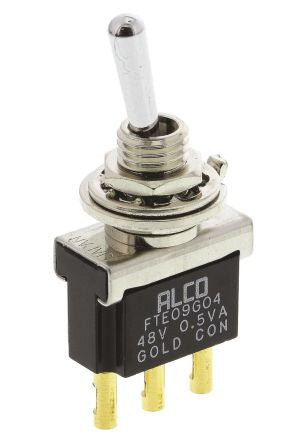

TE Connectivity Single Pole Double Throw (SPDT) Toggle Switch, On-Off-On, Panel Mount [FTE09G-RS]; 317-099
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Contact Current Rating | 14 mA @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Through Hole |
| Panel Cut Out Diameter | 6.2mm |
| Actuator Length | 10.5mm |
| Actuator Material | Chromium Plated Brass |
| Contact Resistance | 20mΩ |
| Operating Temperature Range | -20 → +70°C |
| Mechanical Life | 50000Operations |
| Contact Material | Gold Plated |
| Minimum Operating Temperature | -20°C |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 |
| Maximum Operating Temperature | +70°C |
| Panel Cut Out Size | 6.2mm |
