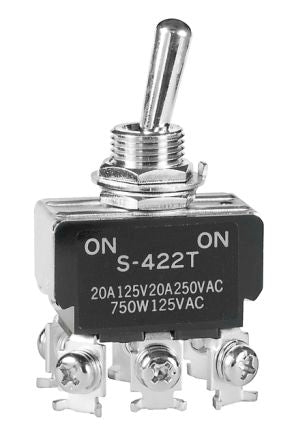

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount [S422T]; 181-3651
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | Latching |
| Contact Current Rating | 20 A |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| Illuminated | No |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 17.5mm |
| Voltage Rating | 250V ac |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Alloy (Movable & Stationary) |
| Minimum Operating Temperature | -10°C |
| Operating Temperature Range | -10 +70°C |
| Standards Met | CSA, UL |
| Maximum Operating Temperature | +70°C |
