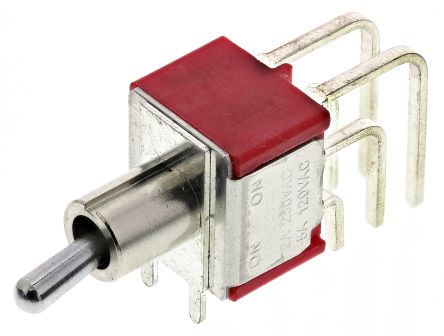

RS PRO Double Pole Double Throw (DPDT) Toggle Switch, Latching, PCB; 734-7028
Mã kho: 7347028
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 250 V ac |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Panel Cut Out Diameter | 6.35mm |
| Actuator Length | 5.08mm |
| Actuator Material | Chromium Plated Brass |
| Contact Resistance | 10mΩ |
| Panel Cut Out Size | 6.35mm |
| Mechanical Life | 40000Cycles |
| Maximum Operating Temperature | +85°C |
| Standards Met | RoHS & Lead Free |
| Operating Temperature Range | -30 +85°C |
| Contact Material | Silver Plated Brass |
| Minimum Operating Temperature | -30°C |
