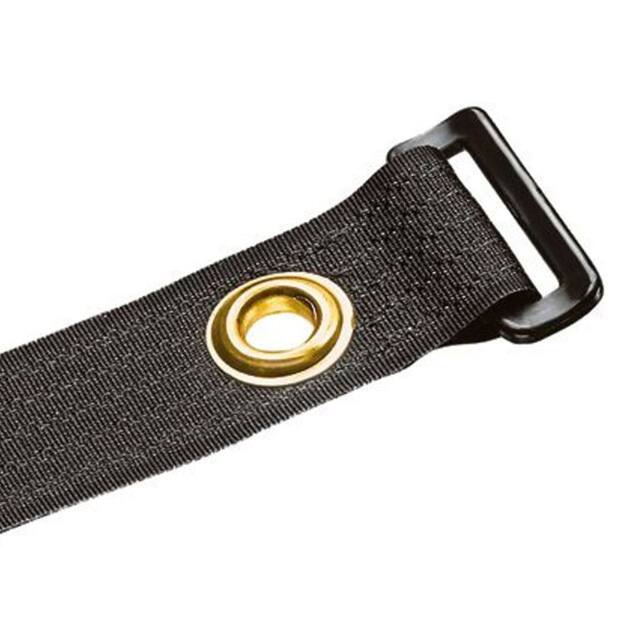

Panduit Ultra-Cinch™ hook & loop cinch cable tie, center mount grommet, UL94-V2 Rated, 7.5 (190.5mm) length, .85 (21.6mm) width, nylon hook & loop, brass grommet, nylon ring, black, standard package. [UGCTCV1.5S-X0]; PAP564

Mã kho: PAP564
Mã nhà sản xuất: UGCTCV1.5S-X0
Tên nhà sản xuất: Panduit
Original price 105.190₫ - Original price 105.190₫
Original price
105.190₫
105.190₫ - 105.190₫
Current price 105.190₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Hook And Loop Cable Ties / Ultra Cinch Hook And Loop Cable Ties: Panduit UGCTCV1.5S-X0

MÔ TẢ SẢN PHẨM

The Ultra-Cinch™ Hook and Loop Cinch Cable Tie have hooks and loops on same side to secure a greater range of bundle diameters. The soft, premium material is safe to use on high performance cabling to protect against over-tensioning. The cinch cable tie is adjustable, releasable, and re-usable for a

_THÔNG SỐ KỸ THUẬT:

Product Type Hook & Loop Cinch Cable Tie
Color Black
Material Nylon
Maximum Bundle Diameter (In.) 5
Maximum Bundle Diameter (mm) 127
Sub Brand Ultra-Cinch™
Maximum Installation Temperature (°C) 70
Maximum Installation Temperature (°F) 158
Minimum Installation Temperature (°C) 70
Minimum Installation Temperature (°F) -40
Maximum Operating Temperature (°C) 60
Maximum Operating Temperature (°F) 140
Minimum Operating Temperature (°C) -18
Minimum Operating Temperature (°F) 0
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Screw Size #12
Overall Length (In.) 7.5
Overall Length (mm) 190.5
Body Width (In.) 0.85
Body Width (mm) 21.6
Body Thickness (In.) 0.1
Body Thickness (mm) 2.5
Standards Met RoHS Compliant
Application Ideal for Applications Requiring Frequent Moves, Adds, or Changes
