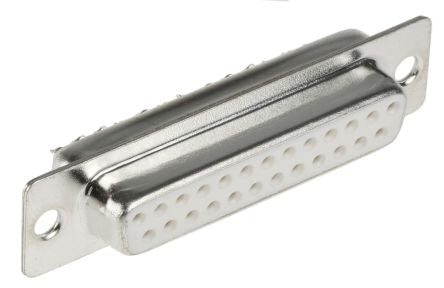

RS PRO Panel Mount, 25 Pin Standard D-Sub D-sub Connector Socket, Shell Size B, Solder Cup; 544-3828
Mã kho: 5443828
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| D-Sub Shell Size | B |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500 V ac |
| Length | 53.04mm |
| Width | 10.85mm |
| Depth | 12.55mm |
| Dimensions | 53.04 x 10.85 x 12.55mm |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold |
| Maximum Operating Temperature | +105°C |
| Contact Material | Phosphor Bronze |
