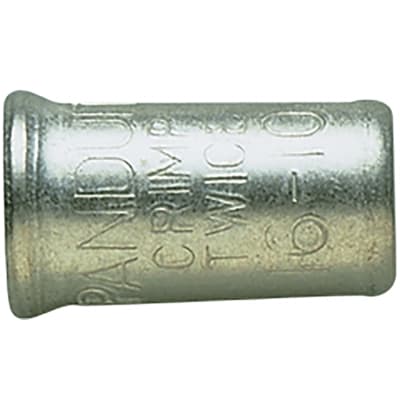

Panduit Wire Joint, non-insulated, 3 #18 - 4 #12 AWG, standard package. [J318-412-T]; PAM699

Name: Panduit Wire Joint, non-insulated, 3 #18 - 4 #12 AWG, standard package. [J318-412-T]; PAM699
Brand: Panduit
SKU: PAM699
Price: 7660.0 VND
Availability: InStock

Mã kho: PAM699

Mã nhà sản xuất: J318-412-T

Tên nhà sản xuất: Panduit

7.660₫ - 7.660₫

7.660₫

7.660₫ - 7.660₫

7.660₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Wire Joints: Panduit J318-412-T

MÔ TẢ SẢN PHẨM

Wire Joint, non-insulated, 3 #18 - 4 #12 AWG, standard package.

_THÔNG SỐ KỸ THUẬT:

Product Type	Wire Joint
Base Material	Copper Coated Steel
Wire Strip Length (In.)	0.5
Color Code	Metallic
Finish/Coating	Tin-Plated
Insulation Material	Non-Insulated
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Maximum Voltage (V)	2000
Maximum Voltage (kV)	2
Overall Length (In.)	0.37
Overall Length (mm)	9.4
Inside Diameter (In.)	0.01
Inside Diameter (mm)	0.2
Standards Met	CSA Certified: C22.2 No 65; UL Listed: UL486C
Wire Strip Length (mm)	12.7
Packaging Type	Bottle
For Use With	CT-100A, CT-200
Sub Brand	Pan-Term
