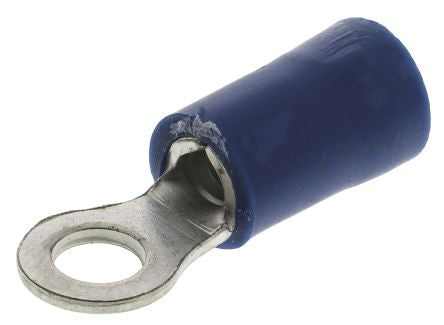

RS PRO Insulated Crimp Ring Terminal, M3.5 Stud Size, 1.5mm² to 2.5mm² Wire Size, Blue; 534-597
Mã kho: 534597
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Insulation | Insulated |
| Insulation Material | PVC |
| Inner Ring Diameter | 3.7mm |
| Outer Ring Diameter | 6.6mm |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M3.5 |
| Colour | Blue |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.8mm |
| Overall Length | 19.6mm |
