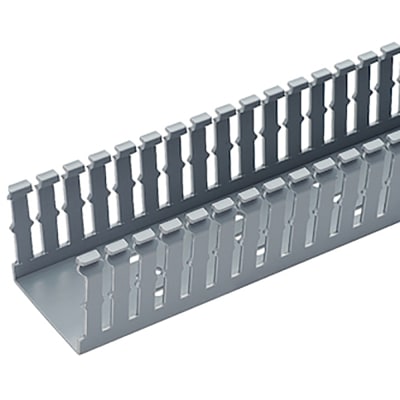

Panduit F4X5LG6-A

Panduit Panduct® type F narrow slot wiring duct, 4 W x 5 H, 6' length, PVC, adhesive, light gray. [F4X5LG6-A]; PAL183

Mã kho: PAL183
Mã nhà sản xuất: F4X5LG6-A
Tên nhà sản xuất: Panduit
667.990₫ - 667.990₫
667.990₫
667.990₫ - 667.990₫
667.990₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit F4X5LG6-A

MÔ TẢ SẢN PHẨM

Panduct® type F narrow slot wiring duct, 4 W x 5 H, 6' length, PVC, adhesive, light gray.

_THÔNG SỐ KỸ THUẬT:

Application High Density Terminal Blocks and Other Hardware
Note Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Product Type Base Wiring Duct
Color Light Gray
Cover Part Number C4LG6
Flammability Rating UL94 V-0
Standards Met RoHS Compliant, UL Recognized, CE Compliant
Material Lead-Free PVC
Mount Method Mounting Holes with Adhesive
Measurement System Metric
Wiring Duct Style Narrow Slot Wiring Duct
Wiring Duct Type Overall Height (In.) 5.1
Overall Height (mm) 129.5
Overall Length (ft.) 6
Overall Length (m) 1.8
Overall Width (In.) 4.25
Overall Width (mm) 108
Slot Width (In.) 0.2
Slot Width (mm) 5.1
Sub Brand Panduct®
Part Features Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time
