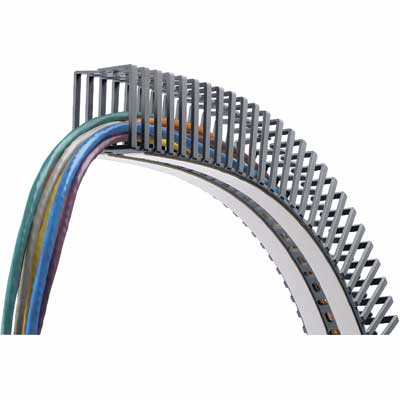

Panduit FL12X12LG-A

Panduit Panduct® type FL flexible wiring duct, 12.5mm W x 12.5mm H, 19.7" length, flexible polypropylene, adhesive, light gray. [FL12X12LG-A]; PAL237

Mã kho: PAL237
Mã nhà sản xuất: FL12X12LG-A
Tên nhà sản xuất: Panduit
231.760₫ - 231.760₫
231.760₫
231.760₫ - 231.760₫
231.760₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit FL12X12LG-A

MÔ TẢ SẢN PHẨM

The FL12X12LG-A Panduct Flexible Wiring Duct is a one-piece, slotted sidewall, open finger design meant to route/protect wires in applications that require flexibility. Designed to add/remove wires after termination without special tooling. Factory-applied tape for easy positioning for non-permanent

_THÔNG SỐ KỸ THUẬT:

Application Manage cable and wire in tight spaces and where flexibility would be an advantage
Note Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation.
Product Type Base/Cover
Color Light Gray
Cover Part Number NA
Flammability Rating UL94V-2
Includes Adhesive
Standards Met RoHS Compliant, UL Recognized, CSA Approved
Material Polypropylene
Mount Method Mounting Holes with Adhesive
Measurement System Metric
Wiring Duct Style Flexible Wiring Duct
Wiring Duct Type FL
Overall Height (In.) 0.49
Overall Height (mm) 12.5
Overall Length (ft.) 1.64
Overall Length (m) 0.5
Overall Width (In.) 0.49
Overall Width (mm) 12.5
Slot Width (In.) 0.3
Slot Width (mm) 7.4
Sub Brand Panduct®
