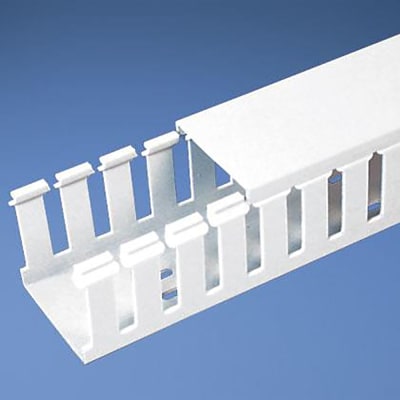

Panduit Panduct® type G wide slot wiring duct, .5 W x .5 H, 6' length, PVC, adhesive, white. [G.5X.5WH6-A]; PAL375

Name: Panduit Panduct® type G wide slot wiring duct, .5 W x .5 H, 6' length, PVC, adhesive, white. [G.5X.5WH6-A]; PAL375
Brand: Panduit
SKU: PAL375
Price: 143690.0 VND
Availability: InStock

Mã kho: PAL375

Mã nhà sản xuất: G.5X.5WH6-A

Tên nhà sản xuất: Panduit

143.690₫ - 143.690₫

143.690₫

143.690₫ - 143.690₫

143.690₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit G.5X.5WH6-A

MÔ TẢ SẢN PHẨM

Panduct® type G wide slot wiring duct, .5 W x .5 H, 6' length, PVC, adhesive, white.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Note	Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Product Type	Base Wiring Duct
Color	White
Cover Part Number	C.5WH6
Flammability Rating	UL94 V-0
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	Mounting Holes with Adhesive
Measurement System	Metric
Wiring Duct Style	Wide Slot Wiring Duct
Wiring Duct Type	Overall Height (In.)	0.6
Overall Height (mm)	15.2
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	0.69
Overall Width (mm)	17.5
Slot Width (In.)	0.31
Slot Width (mm)	7.9
Sub Brand	Panduct®
Part Features	Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
