Panduit Panduct® type G wide slot wiring duct, 1.5 W x 4 H, 6' length, PVC, intrinsic blue. [G1.5X4IB6]; PAL423

Name: Panduit Panduct® type G wide slot wiring duct, 1.5 W x 4 H, 6' length, PVC, intrinsic blue. [G1.5X4IB6]; PAL423
Brand: Panduit
SKU: PAL423
Price: 313650.0 VND
Availability: InStock

Mã kho: PAL423

Mã nhà sản xuất: G1.5X4IB6

Tên nhà sản xuất: Panduit

313.650₫ - 313.650₫

313.650₫

313.650₫ - 313.650₫

313.650₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit G1.5X4IB6

MÔ TẢ SẢN PHẨM

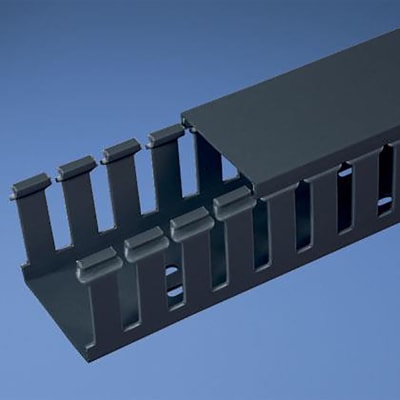

Panduct® type G wide slot wiring duct, 1.5 W x 4 H, 6' length, PVC, intrinsic blue.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Product Type	Base Wiring Duct
Color	Intrinsic Blue
Cover Part Number	C1.5IB6
Flammability Rating	UL94 V-0
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	Mounting Holes
Measurement System	Metric
Wiring Duct Style	Wide Slot Wiring Duct
Wiring Duct Type	G
Overall Height (In.)	4.1
Overall Height (mm)	104.1
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	1.74
Overall Width (mm)	44.2
Slot Width (In.)	0.31
Slot Width (mm)	7.9
Sub Brand	Panduct®
Part Features	Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
