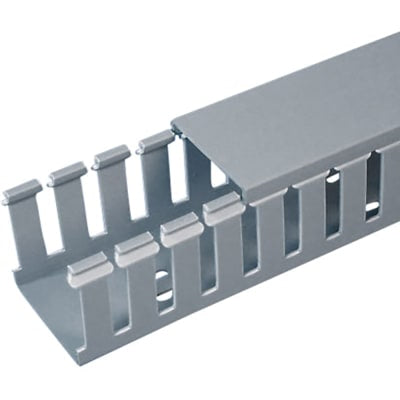

Panduit G3X5LG6-A

Panduit Panduct® type G wide slot wiring duct, 3 W x 5 H, 6' length, PVC, adhesive, light gray. [G3X5LG6-A]; PAL522

Mã kho: PAL522
Mã nhà sản xuất: G3X5LG6-A
Tên nhà sản xuất: Panduit
592.280₫ - 592.280₫
592.280₫
592.280₫ - 592.280₫
592.280₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit G3X5LG6-A

MÔ TẢ SẢN PHẨM

Panduct® type G wide slot wiring duct, 3 W x 5 H, 6' length, PVC, adhesive, light gray.

_THÔNG SỐ KỸ THUẬT:

Application (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Note Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Product Type Base Wiring Duct
Color Light Gray
Cover Part Number C3LG6
Flammability Rating UL94 V-0
Standards Met RoHS Compliant, UL Recognized, CE Compliant
Material Lead-Free PVC
Mount Method Mounting Holes with Adhesive
Measurement System Metric
Wiring Duct Style Wide Slot Wiring Duct
Wiring Duct Type Overall Height (In.) 5.1
Overall Height (mm) 129.5
Overall Length (ft.) 6
Overall Length (m) 1.8
Overall Width (In.) 3.25
Overall Width (mm) 82.6
Slot Width (In.) 0.38
Slot Width (mm) 9.7
Sub Brand Panduct®
Part Features Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
