Panduit Panduct® type MC metric narrow slot wiring duct, 100mm W x 50mm H x 2M length, PVC, international gray. [MC100X50IG2]; PAN200

Name: Panduit Panduct® type MC metric narrow slot wiring duct, 100mm W x 50mm H x 2M length, PVC, international gray. [MC100X50IG2]; PAN200
Brand: Panduit
SKU: PAN200
Price: 1361730.0 VND
Availability: InStock

Mã kho: PAN200

Mã nhà sản xuất: MC100X50IG2

Tên nhà sản xuất: Panduit

1.361.730₫ - 1.361.730₫

1.361.730₫

1.361.730₫ - 1.361.730₫

1.361.730₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit MC100X50IG2

MÔ TẢ SẢN PHẨM

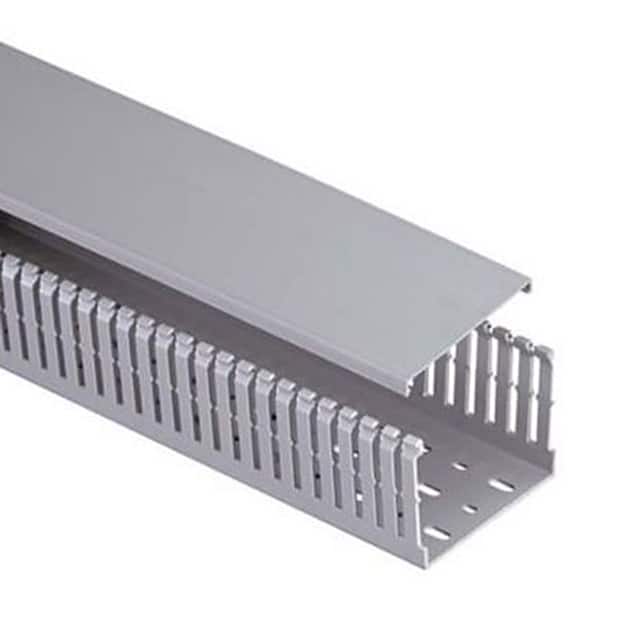

Panduct® type MC metric narrow slot wiring duct, 100mm W x 50mm H x 2M length, PVC, international gray.

_THÔNG SỐ KỸ THUẬT:

Product Type	Base and Cover
Color	International Gray
Cover Part Number	C100IG2 (included)
Flammability Rating	UL94 V-0
Includes	Base and Cover
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	DIN Mounting Holes
Measurement System	Metric
Wiring Duct Style	Metric Narrow Slot Wiring Duct
Wiring Duct Type	MC
Overall Height (In.)	1.89
Overall Height (mm)	48
Overall Length (ft.)	6.6
Overall Length (m)	2
Overall Width (In.)	3.92
Overall Width (mm)	99.6
Slot Width (In.)	0.2
Slot Width (mm)	5
Sub Brand	Panduct®
Part Features	Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together.
