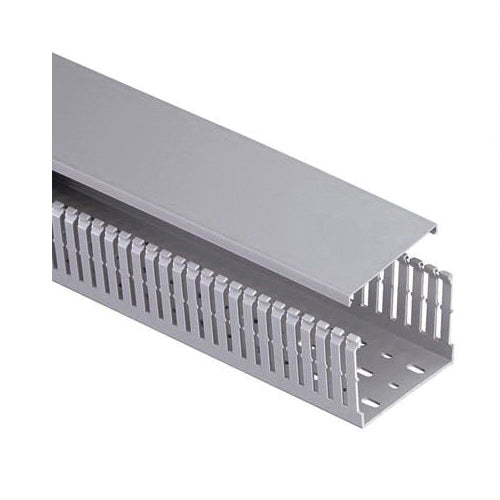

Panduit MC37X75IG2

Panduit Panduct® type MC metric narrow slot wiring duct, 37mm W x 75mm H x 2M length, PVC, international gray. [MC37X75IG2]; PAN219

Mã kho: PAN219
Mã nhà sản xuất: MC37X75IG2
Tên nhà sản xuất: Panduit
966.190₫ - 966.190₫
966.190₫
966.190₫ - 966.190₫
966.190₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit MC37X75IG2

MÔ TẢ SẢN PHẨM

The MC37X75IG2 Panduct PVC Narrow Slot Wiring Duct and Cover feature a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temper

_THÔNG SỐ KỸ THUẬT:

Application Narrow slot/finger design intended to provide more slots for high-density European applications
Product Type Base and Cover
Color International Gray
Cover Part Number C37IG2 (included)
Flammability Rating UL94V-0
Includes Base and Cover
Standards Met RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
Material Lead-Free PVC
Mount Method DIN Mounting Holes
Measurement System Metric
Wiring Duct Style Metric Narrow Slot Wiring Duct
Wiring Duct Type MC
Overall Height (In.) 2.85
Overall Height (mm) 72.4
Overall Length (ft.) 6.5
Overall Length (m) 2
Overall Width (In.) 1.46
Overall Width (mm) 37.1
Slot Width (In.) 0.2
Slot Width (mm) 5
Sub Brand Panduct®
BMEcat - Flexibility 0
BMEcat - Material only Plastic
BMEcat - Mounting Method Bottom perforation
BMEcat - With Cover 1
CE Compliant Yes
CE Marking Yes
CSA Certified Yes
Diameter (In.) 14
Diameter (mm) 356
Duct Size W x H (In.) 1.46 x 2.85
Duct Size W x H (mm) 37.1 x 72.4
ETIM Number EC000012
Environment Indoor
Length (ft.) 6.6
Length (m) 2
Material Grade PVC
Nominal Duct Size WXH inches (mm) 37 x 75
Overall Length (In.) 78.74
Part Features Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together.
Surface Treatment Untreated
Type Base and Cover
UL Recognized (File No. E147128) Yes
UL recognized continuous use temp 122°F (50°C)
UNSPSC 39131712
