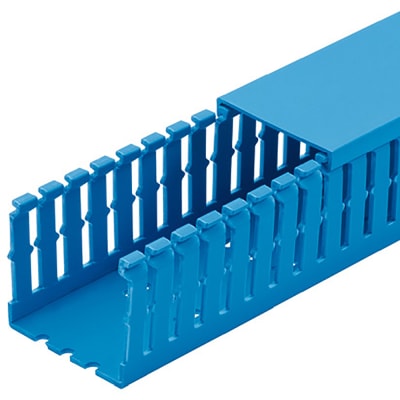

Panduit Panduct® type F narrow slot wiring duct, 2 W x 4 H, 6' length, PVC, intrinsic blue. [F2X4IB6]; PAL142

Name: Panduit Panduct® type F narrow slot wiring duct, 2 W x 4 H, 6' length, PVC, intrinsic blue. [F2X4IB6]; PAL142
Brand: Panduit
SKU: PAL142
Price: 312620.0 VND
Availability: InStock

Mã kho: PAL142

Mã nhà sản xuất: F2X4IB6

Tên nhà sản xuất: Panduit

312.620₫ - 312.620₫

312.620₫

312.620₫ - 312.620₫

312.620₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit F2X4IB6

MÔ TẢ SẢN PHẨM

Panduct® type F narrow slot wiring duct, 2 W x 4 H, 6' length, PVC, intrinsic blue.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Product Type	Base Wiring Duct
Color	Intrinsic Blue
Cover Part Number	C2IB6
Flammability Rating	UL94 V-0
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	Mounting Holes
Measurement System	Metric
Wiring Duct Style	Narrow Slot Wiring Duct
Wiring Duct Type	Overall Height (In.)	4.1
Overall Height (mm)	104.1
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	2.25
Overall Width (mm)	57.2
Slot Width (In.)	0.2
Slot Width (mm)	5.1
Sub Brand	Panduct®
Part Features	Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time
