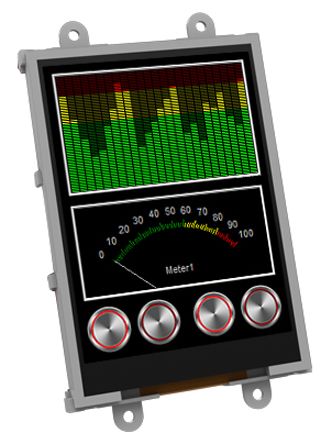

4D Systems uLCD-32PTU TFT LCD Colour Display / Touch Screen, 3.2in VGA, 240 x 320pixels [uLCD-32PTU]; 902-8653
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 3.2in |
| Interface Type | I2C, TTL |
| Resolution | 240 x 320pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 48.6 x 64.8mm |
| Supply Voltage | 5.5 V |
| Touch Screen Type | Resistive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Dc |
| Dimensions | 76.69 x 56.32 x 15.9mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Graphics Array Type | VGA |
| Operating Temperature Range | -10 → +60°C |
| Number of Colours | 65536 |
| Depth | 15.9mm |
| Contrast Ratio | 14.5840277777778 |
| Brightness | 200cd/m² |
| Height | 79.65mm |
| Viewing Area Width | 48.6mm |
| Response Time | 25ms |
| Viewing Area Height | 64.8mm |
| Standards Met | CE, RoHS Compliant |
| Width | 56.32mm |
| Current Rating | 215mA |
