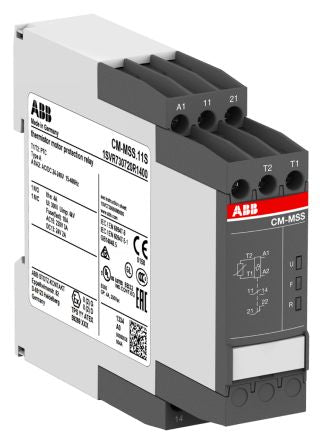

ABB Temperature Monitoring Relay With SPDT Contacts, 24 → 240 V ac/dc [1SVR740720R1400]; 876-4989
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Temperature |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | SPDT |
| Time Delay | <100 ms |
| Temperature Sensitivity | Overtemperature, Winding Temperature |
| Dimensions | 103.7 x 22.5 x 85.6 mm |
| Height | 85.6mm |
| Mounting Type | DIN Rail, Snap-In |
| Terminal Type | Push In |
| Operating Temperature Range | -25 → +60 °C |
| Width | 22.5mm |
| Length | 103.7mm |
| Series | CM-MSS |
| Standards Met | ATEX, CB Scheme, CCC, CE, CULus, EAC, EMC, GL, IEC/EN 60255-1, IEC/EN 60947-8, RCM, RoHS |
| Current Range | Maximum of 3.7 mA |
| Minimum Operating Temperature | -25°C |
| Special Features | Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit, Test |
| Maximum Operating Temperature | +60°C |
