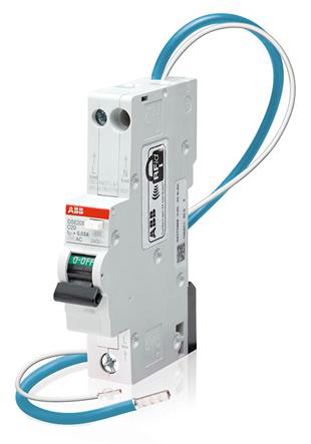

1P+N 10 kA 20 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA System M Pro DSE201 M [2CSR275051R1204]; 136-7803
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | System M Pro |
| Series | DSE201 M |
| Current Rating | 20 A |
| Trip Sensitivity | 30mA |
| Number of Poles | 1+N |
| Mounting Style | DIN Rail |
| Earth Leakage Protection Type | AC |
| Terminal Contact Type | Fail Safe Cage, Screw |
| Circuit Breaker Type | RCBO |
| Application | Commercial, Industrial, Residential |
| Reset Actuator Type | Toggle Switch |
| Overall Width | 115mm |
| Standards Met | AS/NZS 61009, IEC 61009-1, IEC 61009-2-2 |
| Overall Dimensions | 17.6 x 115 x 68.9mm |
| Overall Length | 17.6mm |
| Tripping Mechanism | Thermal-Magnetic |
| Tripping Characteristics | Type C |
| Overall Depth | 68.9mm |
| Rated AC Voltage | 230 → 240 V |
| Breaking Capacity | 10 kA |
