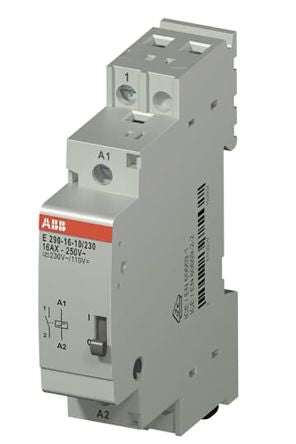

SPST DIN Rail Latching Relay 16 A, 16 A, 110 V dc, 230 V ac [A093960]; 191-9462
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 110 V dc, 230 V ac |
| Contact Configuration | SPST |
| Switching Current | 16 A |
| Mounting Type | DIN Rail |
| Maximum Switching Current AC | 16 A |
| Maximum Switching Current DC | 16 A |
| Maximum Switching Voltage AC | 250V |
| Series | E290-16-10/230 |
| Length | 18mm |
| Depth | 68.9mm |
| Height | 85mm |
| Dimensions | 18 x 68.9 x 85mm |
| Terminal Type | Screw |
| Life | 150000 cycles |
| Number of Poles | 1 |
| Maximum Operating Temperature | +55°C |
| Electrical Life | 150000 cycles |
| Operating Temperature Range | -25 → +55°C |
| Minimum Operating Temperature | -25°C |
| Relay Switching Classification | Latching Relay |
| Features | Energy Saving and Efficient Lighting Control System, Latching Relays are Electromagnetically Operated Devices, The E290 Range Can be Used to Realise a Simple |
