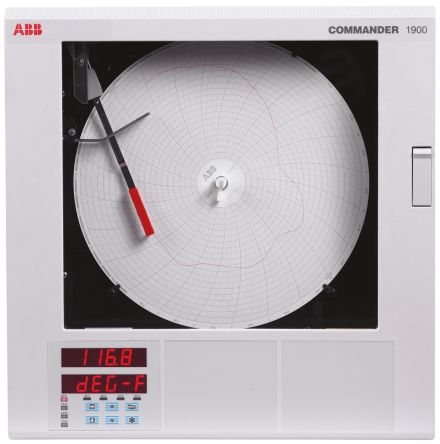

ABB C1912, Circular Chart Recorder Measures Current, Millivolt, Resistance, Temperature, Voltage [C1912 KA0012 00000 STD]; 455-7099
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Chart Type | Circular |
| Parameter Measured | Current, Millivolt, Resistance, Temperature, Voltage |
| Maximum Temperature Measurement | +300 °C, +550 °F, +600 °C, +900 °C, +1100 °F, +1300 °C, +1650 °F, +1700 °C, +1800 °C, +2350 (N) °F, +3000 (R) °F, +3270 (B) °F |
| Maximum Current Measurement | 50mA |
| Maximum Voltage Measurement | +5V |
| Maximum Resistance Measurement | 10 kΩ, 750 Ω |
| Recorder Input Type | MA, MV, RTD, Thermocouple, V |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| IP Rating | IP66 |
| Best Temperature Measurement Accuracy | ±0.5 °C |
| Temperature Measurement Resolution | 0.001 |
| Minimum Operating Voltage | 115V ac |
| Best Voltage Measurement Accuracy | ±0.1 % |
| Best Resistance Measurement Accuracy | ±0.5 % |
| Voltage Measurement Resolution | 0.001 |
| Power Source | Mains |
| Width | 134mm |
| Length | 382mm |
| Maximum Operating Voltage | 230V ac |
| Resistance Measurement Resolution | 0.001 |
| Dimensions | 382 x 134 x 386mm |
| Height | 386mm |
| Model Number p | C1912 |
| Best Current Measurement Accuracy | ±0.2 % |
| Current Measurement Resolution | 0.001 |
| Weight | 8.2kg |
