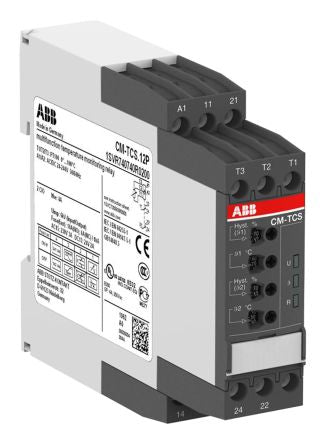

ABB Temperature Monitoring Relay With SPDT Contacts, 3 Phase, 24 → 240 V ac/dc [CM-TCS.12P]; 876-5764
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Temperature |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | SPDT |
| Electrical Phase | 3 |
| Time Delay | 20 ms |
| Temperature Sensitivity | Overtemperature, Temperature Window Monitoring, Undertemperature |
| Temperature Sensing Range | 0 → +100°C |
| Frequency Sensing Range | 13.5 → 440 Hz |
| Minimum Frequency Sensed | 13.5Hz |
| Minimum Temperature Sensed | 0°C |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
| Dimensions | 103.7 x 85.6 x 22.5 mm |
| Maximum Temperature Sensed | +100°C |
| Maximum Operating Temperature | +60°C |
| Standards Met | CAN/CSA 22.2 No.14, CCC, CE, EAC, EMC, EN 50178, GB14048.5 - 2001, GL, IEC/EN 60204, IEC/EN 60255-1, IEC/EN 60947-5-1, RoHS, UL |
| Series | CM-TCS |
| Length | 103.7mm |
| Width | 85.6mm |
| Operating Temperature Range | -40 → +60 °C |
| Special Features | All Configurations and Adjustments by Front-Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold, 6 LEDs for the Indication of Operational StatesValues |
| Maximum Frequency Sensed | 440Hz |
| Terminal Type | Push In |
| Mounting Type | DIN Rail, Snap-In |
| Height | 22.5mm |
