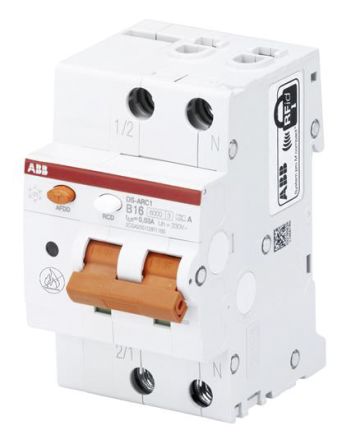

1P + N 6 kA 16 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA System Pro M Compact DS-ARC1 [DS-ARC1 B16 A30]; 181-4368
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | System Pro M Compact |
| Series | DS-ARC1 |
| Current Rating | 16 A |
| Trip Sensitivity | 30mA |
| Number of Poles | 1+N |
| Mounting Style | DIN Rail |
| Earth Leakage Protection Type | A |
| Overall Width | 69mm |
| Reset Actuator Type | Toggle Switch |
| Application | Easy Cross-Wiring and Easy Installation with System Pro M Compact Busbars without any Extra Cables, Supply Possible Both from Top and Bottom Side: Double Slots Available for Connection with Cables and Busbars |
| Circuit Breaker Type | RCBO |
| Overall Depth | 85mm |
| Overall Dimensions | 52.2 x 69 x 85mm |
| Overall Length | 52.2mm |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 230 → 240 V |
| Breaking Capacity | 6 kA |
