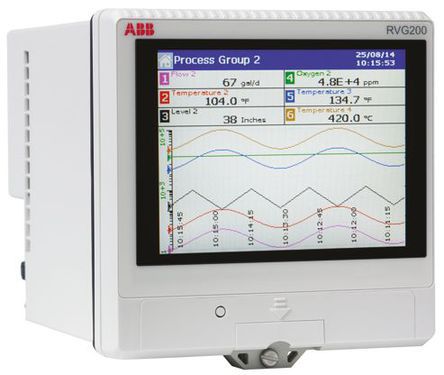

ABB RVG200, 6 Channel, Paperless Chart Recorder Measures Current, Millivolt, Resistance, Temperature, Voltage [RVG200A6Y0Y0Y0A]; 804-6108
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Chart Type | Paperless |
| Parameter Measured | Current, Millivolt, Resistance, Temperature, Voltage |
| Maximum Temperature Measurement | +50 °C |
| Maximum Humidity Measurement | 95%RH |
| Maximum Current Measurement | 50mA |
| Maximum Voltage Measurement | 24V |
| Maximum Resistance Measurement | 10000 Ω |
| Recorder Input Type | Digital 24 V, Digital Volt Free, MA, MV, Resistance, RTD, Thermocouple, V |
| Number of Inputs | 6 |
| Number of Outputs | 1 |
| IP Rating | IP66 |
| Best Temperature Measurement Accuracy | 0.001 |
| Best Resistance Measurement Accuracy | 0.001 |
| Best Voltage Measurement Accuracy | 0.001 |
| Minimum Operating Voltage | 100V ac |
| Weight | 2kg |
| Best Current Measurement Accuracy | 0.001 |
| Model Number p | RVG200 |
| Height | 145mm |
| Dimensions | 145 x 154.5 x 145mm |
| Maximum Operating Voltage | 24 V dc, 240 V ac |
| Length | 145mm |
| Width | 154.5mm |
| Power Source | Mains |
