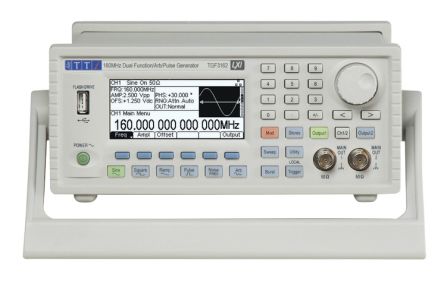

Aim-TTi TGF3162 Function Generator 160MHz GPIB, LAN, USB [59120-6140]; 162-5668
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 160MHz |
| Minimum Frequency Range Sinewave | 1µHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 20 MHz, 50 MHz, 80 MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 1μHz, 1 mHz, 1 μHz |
| Maximum Frequency Range Triangle/Saw | 5MHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | ±1ppm |
| Length | 269 mm, 295 mm |
| Dimensions | 269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top) mm |
| CMOS Output Level | 3V |
| Attenuation | 42dB |
| Output Amplitude | 20V Pk-Pk |
| Maximum Operating Temperature | +40°C |
| Model Number p | TGF3162 |
| Weight | 3.2kg |
| Interface Type | GPIB, LAN, USB |
| Output Impedance | 50Ω |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 mHz → 20 MHz (Pulse), 1 μHz → 50 MHz (Square), 1 μHz → 80 MHz (Arbitrary) |
| Minimum Operating Temperature | +5°C |
| Height | 86.5 mm, 97 mm |
| Width | 213.5 mm, 250 mm |
| Input Impedance | 10 kΩ |
