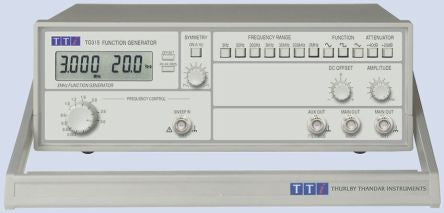

Aim-TTi TG315 Function Generator 3MHz [TG315]; 465-8906
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 3MHz |
| Minimum Frequency Range Sinewave | 0.03Hz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 3MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.03 Hz |
| Maximum Frequency Range Triangle/Saw | 3MHz |
| Minimum Frequency Range Triangle/Saw | 0.03Hz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Time Base Accuracy | ±10ppm |
| Dimensions | 235 x 260 x 88mm |
| Minimum Operating Temperature | +5°C |
| Height | 88mm |
| Model Number p | TG315 |
| Weight | 1.9kg |
| Output Impedance | 50 Ω, 600 Ω |
| Width | 260mm |
| Frequency Range Square Pulse and Arbitrary Waveform | 0.03 Hz → 3 MHz |
| Attenuation | -60 dB, -40 dB, -20 dB, 0 dB |
| Length | 235mm |
| Maximum Operating Temperature | +40°C |
| CMOS Output Level | 0 → 5V |
| Plug Type | Type C - European Plug, Type G - British 3-pin |
| Input Impedance | 10 kΩ |
| TTL Output Level | 0 → 5V |
| Output Amplitude | 20V Pk-Pk |
