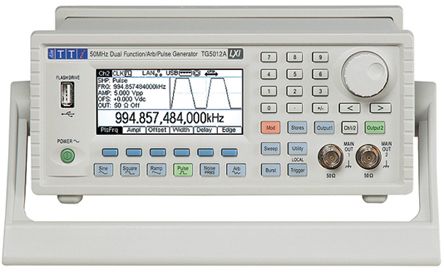

Aim-TTi TG5012A Function Generator 50MHz LAN, USB [TG5012A]; 800-8239
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 50MHz |
| Minimum Frequency Range Sinewave | 1µHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 10 MHz, 12.5 MHz, 50 MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz, 500 μHz |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | 1ppm |
| Minimum Operating Temperature | +5°C |
| Height | 97mm |
| Output Impedance | 50Ω |
| Input Impedance | 5 kΩ |
| Model Number p | TG5012A |
| Weight | 2.7kg |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 10 MHz, 1 μHz → 50 MHz, 500 μHz → 12.5 MHz |
| Length | 295mm |
| Width | 250mm |
| Dimensions | 295 x 250 x 97mm |
| Output Amplitude | 20V Pk-Pk |
| Maximum Operating Temperature | +40°C |
| Interface Type | LAN, USB |
