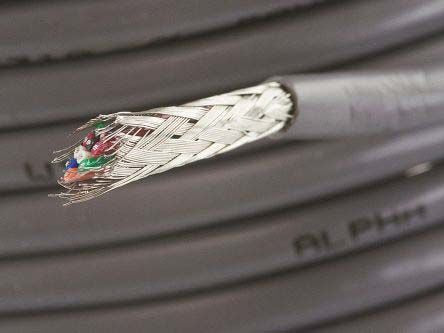

Alpha Wire 12 Conductor Braid Industrial Cable 0.52 mm²(CE, CSA, UL) Grey PVC Sheath, 30m Reel, Alpha Essentials Series [1723 SL005]; 701-5945
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 0.52 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 9.75mm |
| Screen Type | Braid |
| Maximum Operating Temperature | +60°C |
| Core Strands | 26/0.16 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 600 V |
| Minimum Operating Temperature | -20°C |
| Series | Alpha Essentials |
| Drain Wire | No |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 10 x Diameter |
| Standards Met | CE, CSA, UL |
| Insulation Material | PE |
| Conductor Resistance | 36.7 Ω/km |
