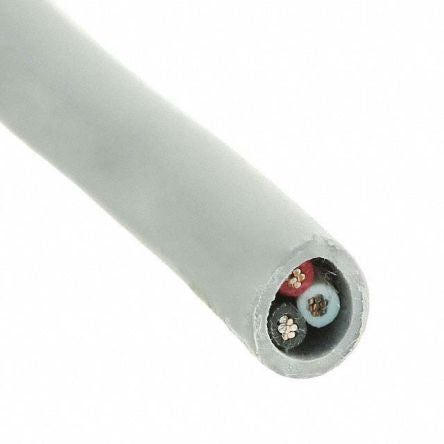

Alpha Wire 3 Conductor Unscreened Industrial Cable 0.56 mm²(CE, CSA, UL) Grey 30m Reel, Alpha Essentials Series [1896L SL005]; 673-3260
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 0.56 mm² |
| Screened/Unscreened | Unscreened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 5.11mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +75°C |
| Core Strands | 7/0.32 mm |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 300 V |
| Minimum Bend Radius | 10 x Diameter |
| Drain Wire | No |
| Conductor Material | Tinned Copper |
| Conductor Resistance | 33.46 Ω/km |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -20°C |
| Insulation Material | LSZH |
| Series | Alpha Essentials |
