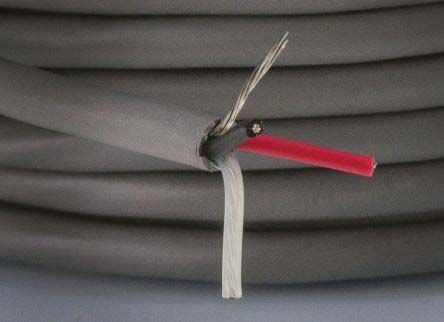

Alpha Wire 3 Conductor Foil Industrial Cable 0.35 mm²(CE, CSA, UL) Grey PVC Sheath, 30m Reel, Alpha Essentials Series [2403C SL005]; 168-1105
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 0.35 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 4.52mm |
| Screen Type | Foil |
| Maximum Operating Temperature | +75°C |
| Core Strands | 7/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 300 V |
| Insulation Material | PE |
| Minimum Bend Radius | 10 x Diameter |
| Series | Alpha Essentials |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -20°C |
| Conductor Material | Tinned Copper |
| Drain Wire | Yes |
| Conductor Resistance | 53.48 Ω/km |
