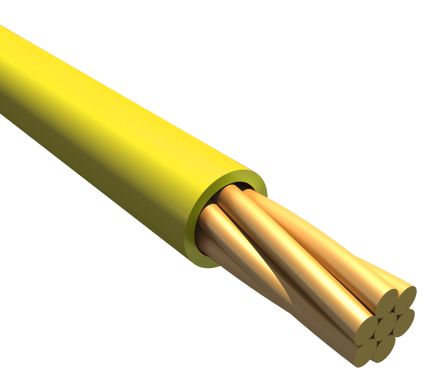

Alpha Wire High Temperature Wire 0.09 mm² CSA, Yellow 30m Reel, ThermoThin Series [2928 YL005]; 137-3287
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.09 mm² |
| Sheath Colour | Yellow |
| Wire Style | AWM/STYLE 11540 |
| American Wire Gauge | 28 AWG |
| Insulation Material | Fluoropolymer |
| Resistant To | Chemicals, Sunlight, Water |
| Core Strands | 13332 |
| Minimum Operating Temperature | -150°C |
| Maximum Operating Temperature | +300°C |
| Operating Temperature Range | -150 → +300 °C |
| Length | 30m |
| Outer Diameter | 0.58mm |
| Voltage Rating | 600 V ac |
| Fire Behaviour | Flame Retardant |
| Conductor Material | Nickel Plated Copper |
| Insulation Wall Thickness | 0.1mm |
| Series | ThermoThin |
| Number of Strands | 7 |
| Type | Hook-Up Wire |
| Standards Met | EU Low Voltage Directive 2014/35/EC, UL AWM 11540 |
| Size of Strands | 0.127 mm, 36 AWG |
| Shield Type | Unshielded |
