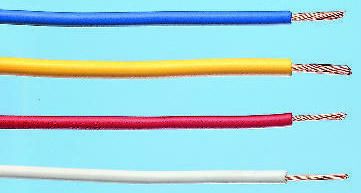

Alpha Wire Harsh Environment Wire 0.35 mm² CSA, Yellow 30m Reel [3051 YL005]; 111-8685
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.35 mm² |
| Sheath Colour | Yellow |
| Wire Style | UL1007 |
| American Wire Gauge | 22 AWG |
| Insulation Material | PVC |
| Resistant To | Flame |
| Core Strands | 7/0.25 mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 80°C |
| Operating Temperature Range | -40 → +80 °C |
| Length | 30m |
| Outer Diameter | 1.57mm |
| Voltage Rating | 300 V |
| Number of Strands | 7 |
| Insulation Wall Thickness | 0.41mm |
| Shield Type | Unshielded |
| Size of Strands | 0.25 mm |
| Conductor Material | Copper |
| Standards Met | UL Listed |
| Cable Shape | Single Core |
