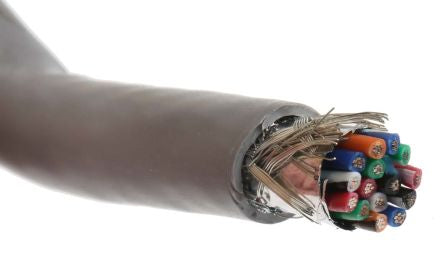

Alpha Wire 15 Conductor Braid, Foil Industrial Cable 0.35 mm²(CE, CSA, UL) Grey PVC Sheath, 30m Reel [6347 SL005]; 828-2522
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 15 |
| Cross Sectional Area | 0.35 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 8.13mm |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 300 V |
| Minimum Bend Radius | 10 x Diameter |
| Conductor Resistance | 16.4 Ω/1000ft |
| Conductor Material | Tinned Copper |
| Drain Wire | Yes |
| Series | Alpha Essentials |
| Standards Met | CE, CSA, UL |
| Insulation Material | PVC |
| Minimum Operating Temperature | -20°C |
