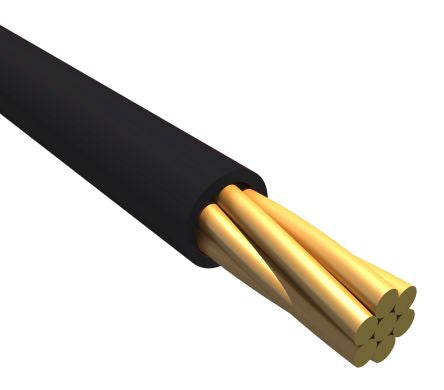

Alpha Wire Black, 0.33 mm² Hook Up Wire EcoWire Plus Series , 305m [6823 BK001]; 838-5191
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.33 mm² |
| Sheath Colour | Black |
| American Wire Gauge | 22 AWG |
| Core Strands | 7/0.25 mm |
| Insulation Material | MPPE |
| Outer Diameter | 1.17mm |
| Length | 305m |
| Voltage Rating | 300 V |
| Conductor Material | Copper |
| Wire Style | ISO 6722 |
| Maximum Operating Temperature | +110°C |
| Shield Type | Unshielded |
| Series | EcoWire Plus |
| Insulation Wall Thickness | 0.2mm |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, ISO 6722, Reach Complaint, RoHS Complaint |
