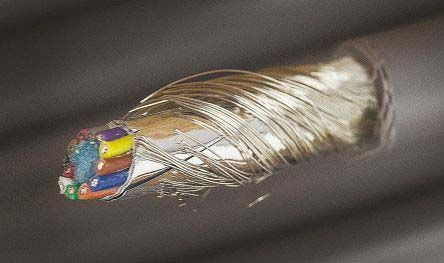

Alpha Wire 12 Conductor Foil Industrial Cable 0.14 mm²(CE, CSA, UL) Grey PVC Sheath, 30m Reel, XTRA-GUARD FLEX Series [86112CY SL005]; 408-928
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 0.14 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 26 AWG |
| Outer Diameter | 7.7mm |
| Screen Type | Foil |
| Maximum Operating Temperature | +105°C |
| Core Strands | 7/0.16 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 300 V |
| Series | Xtra-Guard Flex |
| Minimum Bend Radius | 8 x Diameter |
| Conductor Material | Tinned Copper |
| Drain Wire | No |
| Standards Met | CE, CSA, UL |
| Conductor Resistance | 134.5 Ω/km |
| Minimum Operating Temperature | -10°C |
| Insulation Material | PVC |
