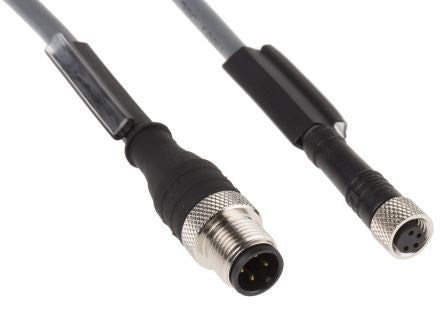

Alpha Wire Alpha Connect Series, M12 to M8 Cordset, 4 Core , 3m Cable [DR04GR101 SL 357]; 131-4695
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M8 |
| Connector B | Straight M12 |
| Length | 3m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Connector B Number of Contacts | 4 |
| Current Rating | 2.2 A |
| Sheath Colour | Grey |
| Number of Strands | 26 |
| IP Rating | IP67, IP68 |
| Voltage Rating | 600 V ac |
| Armoured | No |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Minimum Bend Radius | 4 x D (Static), 6 x D (Dynamic) |
| Connector A Housing Gender | Socket |
| Outer Sheath Material | Polyurethane |
| Series | Alpha Connect |
| Connector B Housing Gender | Plug |
| Conductor Material | Copper |
| Size of Strands | 36 |
| Maximum Operating Temperature | +90°C |
| American Wire Gauge | 22 |
| Shielding | Unshielded |
| Insulation Material | MPPE |
| Sheath Material | Polyurethane PUR |
| Outer Diameter | 5.08mm |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -50°C |
| Standards Met | ANSI/UL 2238, CRU, CSA-C22.2 No. 182.3, UL File Number E485156 |
