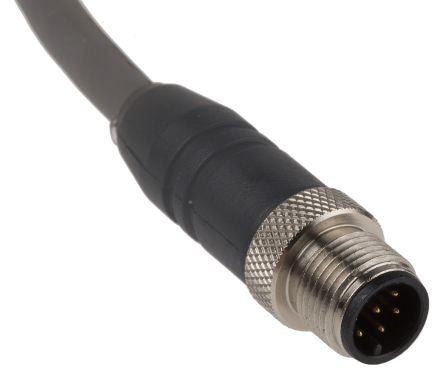

Alpha Wire Alpha Connect Series, Straight M12 to Unterminated Cordset, 8 Core , 3m Cable [DR0800112 SL357]; 174-7560
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 3m |
| Number of Cores | 8 |
| Connector A Number of Contacts | 8 |
| Current Rating | 2.2 A |
| Sheath Colour | Grey |
| Number of Strands | 26 |
| IP Rating | IP67, IP68 |
| Voltage Rating | 300 V ac |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Connector A Housing Gender | Plug |
| Series | Alpha Connect |
| Maximum Operating Temperature | +105°C |
| Size of Strands | 36 |
| Conductor Material | Copper |
| Outer Sheath Material | TPE |
| Sheath Material | Thermoplastic Elastomers TPE |
| American Wire Gauge | 22 |
| Outer Diameter | 6.35mm |
| Insulation Material | SR-PVC |
| Minimum Operating Temperature | -40°C |
| Standards Met | ANSI/UL 2238, CSA-C22.2 No. 182.3 |
| Shielding | Unshielded |
