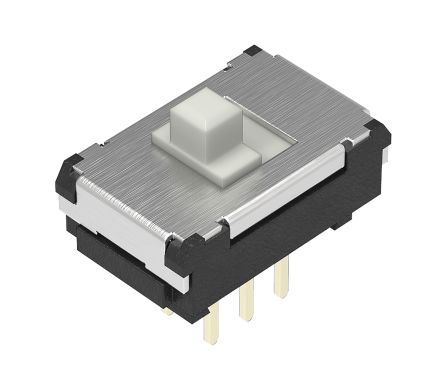

Through Hole Slide Switch Double Pole Double Throw (DPDT) Latching 100 mA Slide [SSSS922000]; 123-8945
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | Through Hole |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA |
| Terminal Type | Solder |
| Actuator Type | Slide |
| Length | 11.5mm |
| Width | 7.2mm |
| Depth | 7.5mm |
| Dimensions | 11.5 x 7.2 x 7.5mm |
| Contact Resistance | 30 (Initial) mΩ, 80 (After Lifetime) mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 12V dc |
