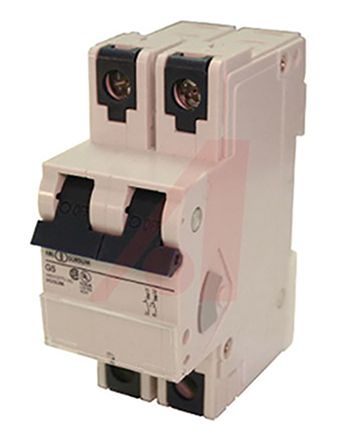

Altech 13A 2 Pole Thermal Magnetic Circuit Breaker V-EA [2C13UM]; 899-3039
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 13A |
| Number of Poles | 2 |
| Series | V-EA |
| Special Features | IP20 Terminal Protection |
| Break Time | Time Delay |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Overall Length | 93.3mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal-Magnetic |
| Overall Depth | 74.7mm |
| Overall Dimensions | 93.3 x 35 x 74.7mm |
| Reset Actuator Type | Handle |
| Circuit Breaker Type | MCCB |
| Rated DC Voltage | 80V |
| Rated AC Voltage | 480Y/277V |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Appliances, Business Equipment, Control Circuit Applications, Lighting, Low Inrush Motors, UL508 Application, Wiring Protection |
| Mounting Style | DIN Rail Mount |
