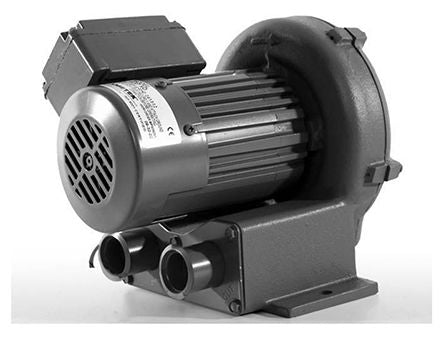

Ametek Regenerative Centrifugal Fan 200.4 x 215.6 x 186.9mm, 115 V ac, 230 V ac AC [DR083DC9Y/081572]; 892-1665
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 115 V ac, 230 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 30.70m³/h |
| Series | DR083 |
| Height | 200.4mm |
| Width | 186.9mm |
| Depth | 215.6mm |
| Dimensions | 186.9 x 200.4 x 215.6mm |
| Horizontal Hole Spacing | 165.1mm |
| Inlet Diameter | 31.8mm |
| Outlet Diameter | 31.8mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Termination Type | Terminal |
| Mounting Hole Diameter | 10.1mm |
| Maximum Current | 1.18 A, 590 mA |
| Direction of Curve | Forward |
