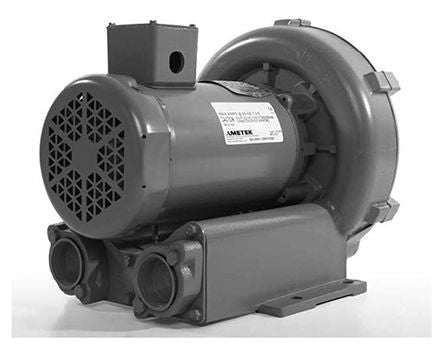

Ametek Regenerative Centrifugal Fan 211 x 199 x 292mm, 575 V ac AC [DR101Y86M/038938]; 892-1677
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 51.73m³/h |
| Series | DR101 |
| Height | 211mm |
| Width | 199mm |
| Depth | 292mm |
| Dimensions | 199 x 211 x 292mm |
| Inlet Diameter | 25.4mm |
| Outlet Diameter | 25.4mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Termination Type | Terminal |
| Maximum Current | 400mA |
| Mounting Hole Diameter | 10mm |
| Direction of Curve | Forward |
| Horizontal Hole Spacing | 165mm |
